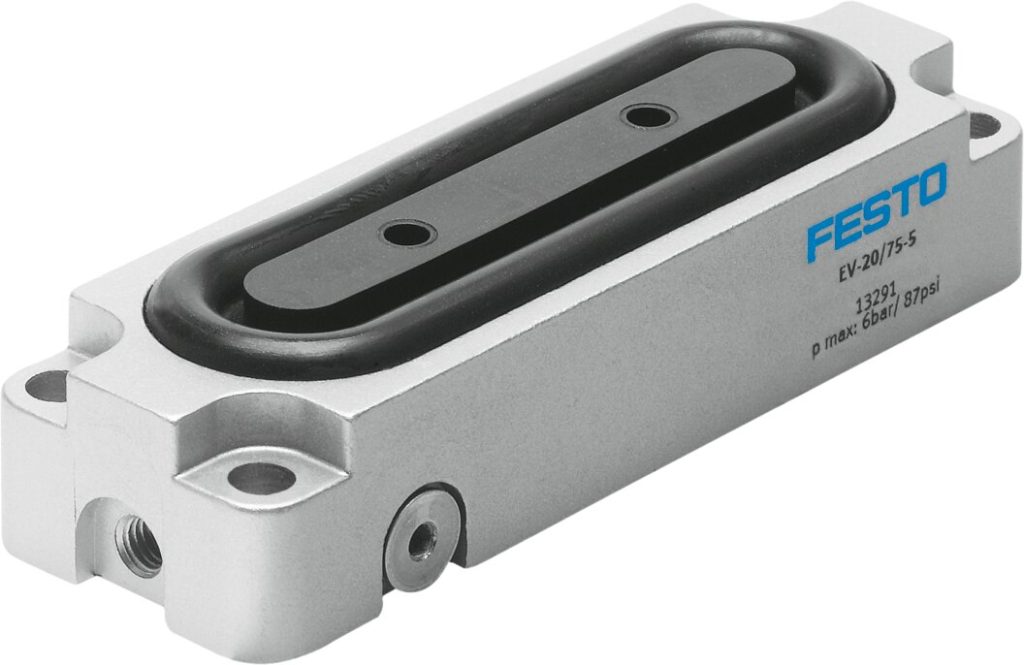

For clamping strokes against a stop. Pressure chamber equipped with a diaphragm.
- Compact rodless cylinder with diaphragm
- Single-acting, with reset function
- Flat design
- Hermetically sealed
- Pressure plates and foot mounting as accessories
| Clamping Surface | Part no. | Type |
| 10×30 3 mm | 151993 | EV-10/30-3 |
| 15×40 4 mm | 13289 | EV-15/40-4 |
| 15×63 4 mm | 13290 | EV-15/63-4 |
| 20×75 5 mm | 13291 | EV-20/75-5 |
| 20×120 5 mm | 13292 | EV-20/120-5 |
| 20×180 5 mm | 13293 | EV-20/180-5 |
| Ø 12 3 mm | 150681 | EV-12-3 |
| Ø 16 4 mm | 150682 | EV-16-4 |
| Ø 20 | 150683 | EV-20-4 |
| Ø 25 | 150684 | EV-25-4 |
| Ø 32 5 mm | 150685 | EV-32-5 |
| Ø 40 | 184857 | EV-40-5 |
| Ø 50 | 184858 | EV-50-5 |
| Ø 63 | 184859 | EV-63-5 |
